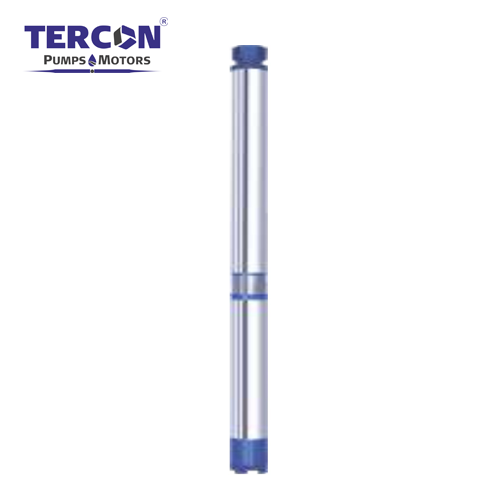

V2 (68mm) / V3 (74mm) Submersible Pumpsets

Salient Features :

1. Fully Stainless Steel Stator Body
2. Diffusers and Impellers are Glass-Filled with SS Wear Rings.
3. Rotor supplies with Grinded, Burnished & Epoxy Paints,
4. Dynamically Balanced Rotor,
5. Start easily at low voltage.
6. All Parts are duly machined with consistent quality.
7. All Hardware Parts are Stainless Steel.
8. All Rubber Parts are installed with NBR.

Applications :

Domestic & Agriculture Water Supply : Apartment, Buildings, Hotels, to be used inAgricultural, Canals, Rivers, Fountains, Fire-fighting System, and also Solar Systems..

Technical Features :

V4 Submersible Pumpsets

Salient Features :

1. International NEMA Spline Caplin.
2. Thrust Bearing used with impregnated in Carbon / SS segments to ensure thrust load.
3. Pump & Motors are designed with Steel Stainless
4. NRV provided for reducing the back flow.
5. Diffusers and Impellers are Glass-Filled with SS Wear Rings.
6. Rotor supplies with Grinded, Burnished & Epoxy Paints,
7. Dynamically Balanced Rotor,
8. Start easily low voltage.
9.All Hardware Parts are Stainless Steels

Applications :

Domestic & Agriculture Water Supply : Apartment, Buildings, Hotels, to be used in Agricultural, Canals, Rivers, Fountains, Fire-fighting System, and also Solar Systems..

Technical Features :

• Head Range : 04 to 335 Meter
• Discharge Range : 30 to 480 LPM
• Motor Rating : 0.5Hp to 5.0Hp in Single Phase, 230v, 50Hz, AC Supply 0.5Hp to 7.5Hp in Three Phase, 380v / 415v, 50Hz, AC Supply
• Voltage Range : 150v to 250v (1 Phase) 200v to 440v (3 Phase

V6 Submersible Pumpsets (50 Ft.)

Salient Features :

1. High Efficient Investment Casting Process Diffusers are used with SS 304
2. All Rotating Parts Balanced in Precision Grade to reduce Vibration & Noise
3. All Guide Bushes are protected with sand guards.
4. Upper thrust provision provided in each models.
5. All Pumps are provided with Suction Guide Support.
6. All Bearing Sleeves are provided with Hard Crome Platting,
7. Carbon / SS Thrust Bearing are provided to withstand High Load.
8. Winding wires are wrapped with superior polymer to withstand wide voltage fluctuation.
9. Rotors are painted with special Epoxy Paint for long life.

Technical Features :

• Head Range : 10 to 450 Meter
• Discharge Range : 40 to 780 LPM
• Motor Rating : 3.0Hp to 5.0Hp / 1Phase, 230v, 50Hz, AC Supply3.0 30 / 3Phase 380 / 415vHp to Hp , v , 50Hz, AC Supply
• Voltage Range : 16 25 (1 Phase) 0v to 0v 200v to 440v (3 Phase)

V6 Pumpset (Radial / Mix Flow)

Salient Features :

1.Robust construction to ensure durability of pumpset.
2. All Rotating Parts are dynamically balanced to reduce vibration and noise.
3. Carbon Bearing / Stainless Steel Segments are used to withstand high thrust load.
4. Bearing Sleeves are provided with Hard Chrome Platting
5 Rotors are painted with special epoxy paint for long life .
6. NRV are provided for reduce back pressure
7. Motor design for wide voltage range. 8. Winding wires are wrapped with superior polymers with EC Grade (99.9%)

Applications :

Domestic & Industrial Water Supply Agriculture Water Supply, Drip Irrigation in Farm, Fire Fighting System, High Rise Buildings, Solar Pumping Systems etc.,

Technical Features :

• Head Range : (A) Radial Flow – 13 to 245 Meter // Mix-Flow : 09 to 216 Meter
• Discharge Range : A) Radial Flow – 70 to 450 LPM // Mix-Flow : 200 1150 LPM
• Motor Rating : 3.0Hp to 5.0Hp in Single Phase, 230v, 50Hz, AC Supply 3.0Hp to 5.0Hp in Three Phase, 380v / 415v, 50Hz, AC Supply
• Voltage Range : 160v to 250v (1 Phase) 200v to 440v (3 Phase)

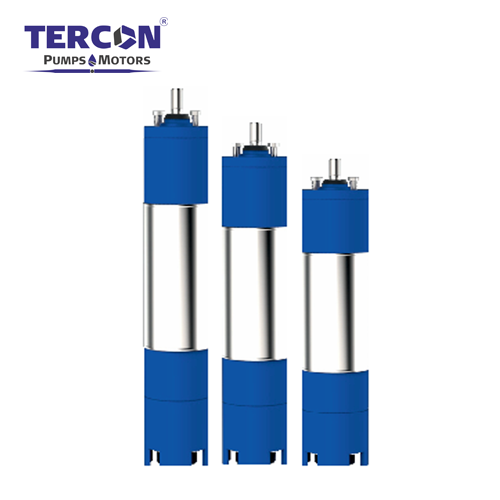

6" Waterfilled Rew. Submersible Motor with NEMA Standard

Salient Features :

1. Motor Stator : Fully Stainless Steel Bosy with Low loss Magnetic Steel.
2. Rotor Shaft : Fully Stainless Steel, Shaft design size for extra strength and stiffness.
3. Rotors : Rotors are dynamically balanced for smooth and vibration free operation and protected with anti-corrossive Rubber Paints.
4. Thrust Bearing : Mitchell with Individual titling pads provided for protection against wear and tear. Design of Bearings are suitable for higher thrust capacity.
5. Winding Wire : Superior Polyester insulated Double Coated to withstand high voltage surges.
6. Seals : Double Leap Seals are protected by Sand Guard.
7. SS Fasteners are provided to prevent against corrosion
8. Laminations are cold rolled M45 C4 Coated with low watts losses.
9. Graded Casting Parts protected with Anti Corrosive Paints.
10. All Rubber Parts are made up from NBR Materials.

Technical Features :

• Motor Rating : 5.5Hp to 50.0Hp in Three Phase, 320v / 440v, 50Hz, AC Supply
• Max. Water Temp. : 30c
• Axel Thrust Capacity : 1500 to 27500n
• Power Cable : 3-Core PVC Flat Cable
• Protection Class :IP 68 / Insulation Class-F
• Connection : DOL or Star/Delta
• Flanging : NEMA 6”
• Voltage Range : 160v to 250v (1 Phase) 200v to 440v (3 Phase)

Openwell Submersible Pumps

Salient Features :

1. Design for wide Voltage Range
2. Rotating Parts Balanced in Precision Grade to reduce Vibration & Noise
3. Full Stainless Steel Stator Tube as well as stainless steel Shaft.
4. Rotors are painted with special Epoxy Paint for long life

Applications :

Domestic & Industrial Water Supply Agriculture Water Supply, Fountains, Drip Irrigation in Farm, Irrigation from openwell where water level fluctuated. Fire Fighting System, High Rise Buildings, Solar Pumping Systems etc.,

Technical Features :

• Head Range : 06 125 to Meter
• Discharge Range : 25 2150 to LPM
• Motor Rating : 0.5Hp to 5.0Hp / 1Phase, 230v, 50Hz, AC Supply1.0 7.5 Hp to Hp , v , 50Hz, AC Supply
• 16 25 (1 Phase) 0v to 0v 200v to 440v (3 Phase)

DOMESTIC OPEN WELL SUBMERSIBLE PUMPS

Salient Features :

1. Stamping - CRCA
2. Impeller - Glass Filled Noryle / C.I.
3. Shaft - SS 410
4. Body - S.S. / C.I. FG 200
5. Bearing - Carbon
6. 0.5Hp to 2.0Hp - Single Phase

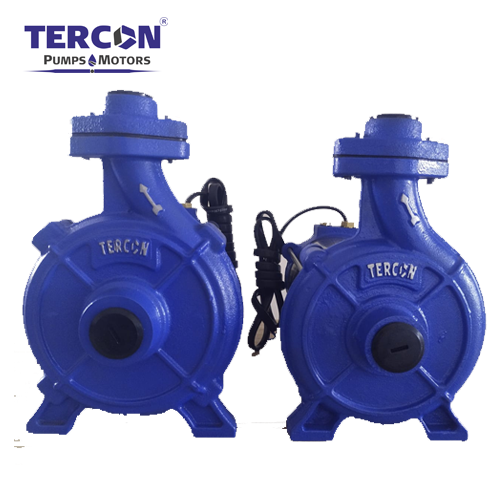

MONOBLOCK PUMPS

Salient Features :

1. Stamping - CRCA
2. Impeller - Brass
3. Shaft - SS 410
4. Body - Cast Iron
5. 0.5-1.0Hp / 1-Ph.

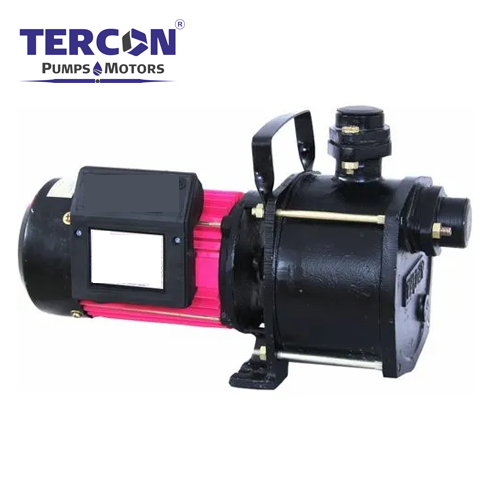

SHELLOW WELL JET PUMPS

Salient Features :

1. Stamping - CRCA
2. Impeller - Noryle
3. Shaft - SS 410
4. Body - Ext. Aluminium
5. 0.5Hp to 1.0Hp - Single Ph

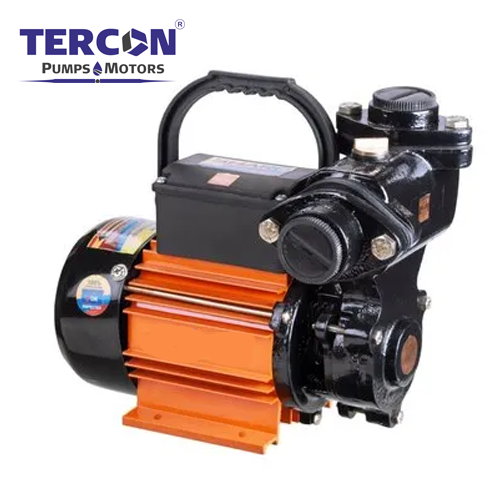

Self Priming Pumps

Salient Features :

1. Stamping - CRCA
2. Impeller – Forged Brass
3. Shaft - SS 410
4. Body – Extruded Aluminium
5. 0.5Hp to 1.0Hp - Single Ph

Single Ph. - 0.5Hp-5.0Hp

Three Phase - Upto 10Hp
